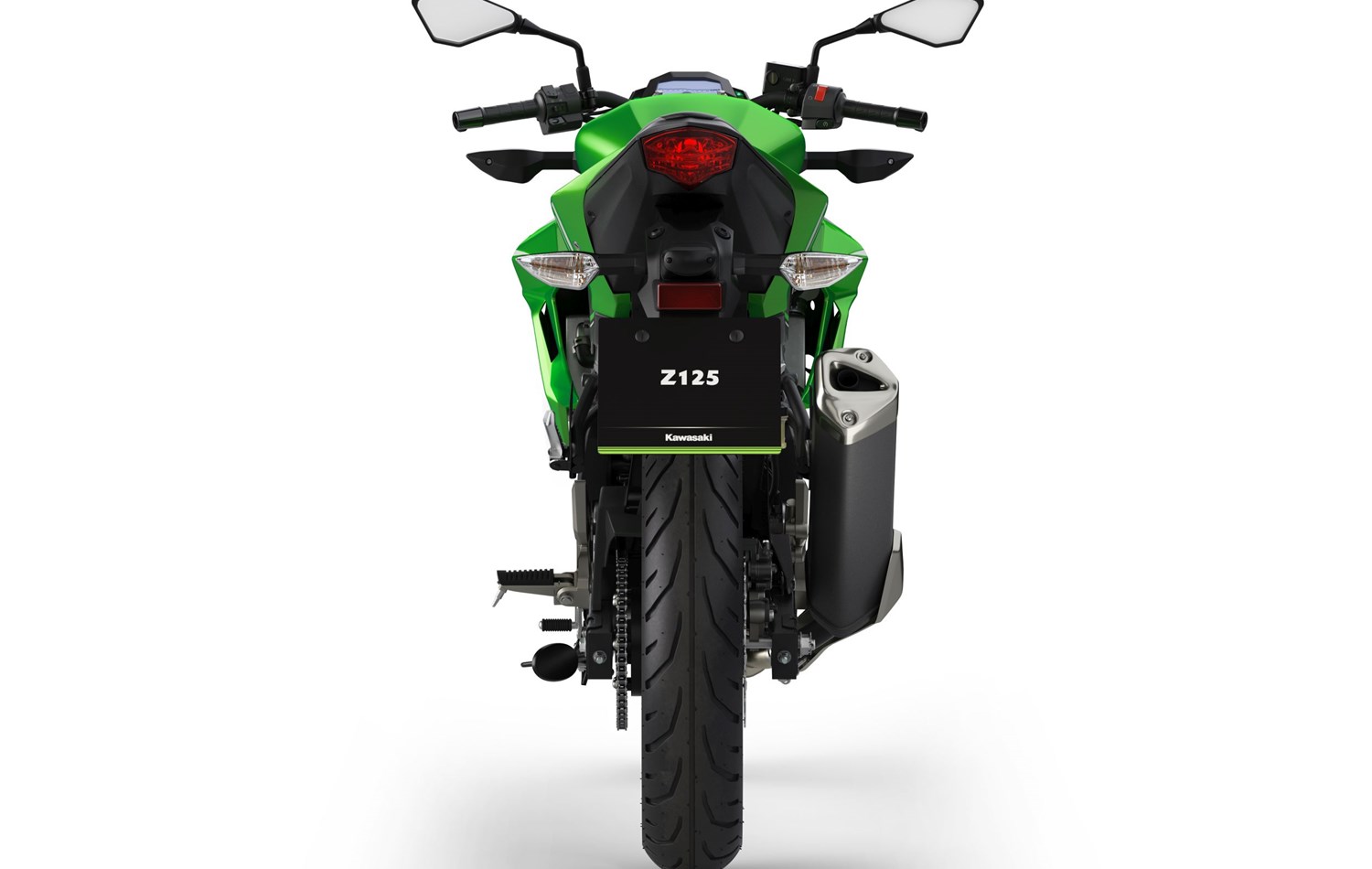

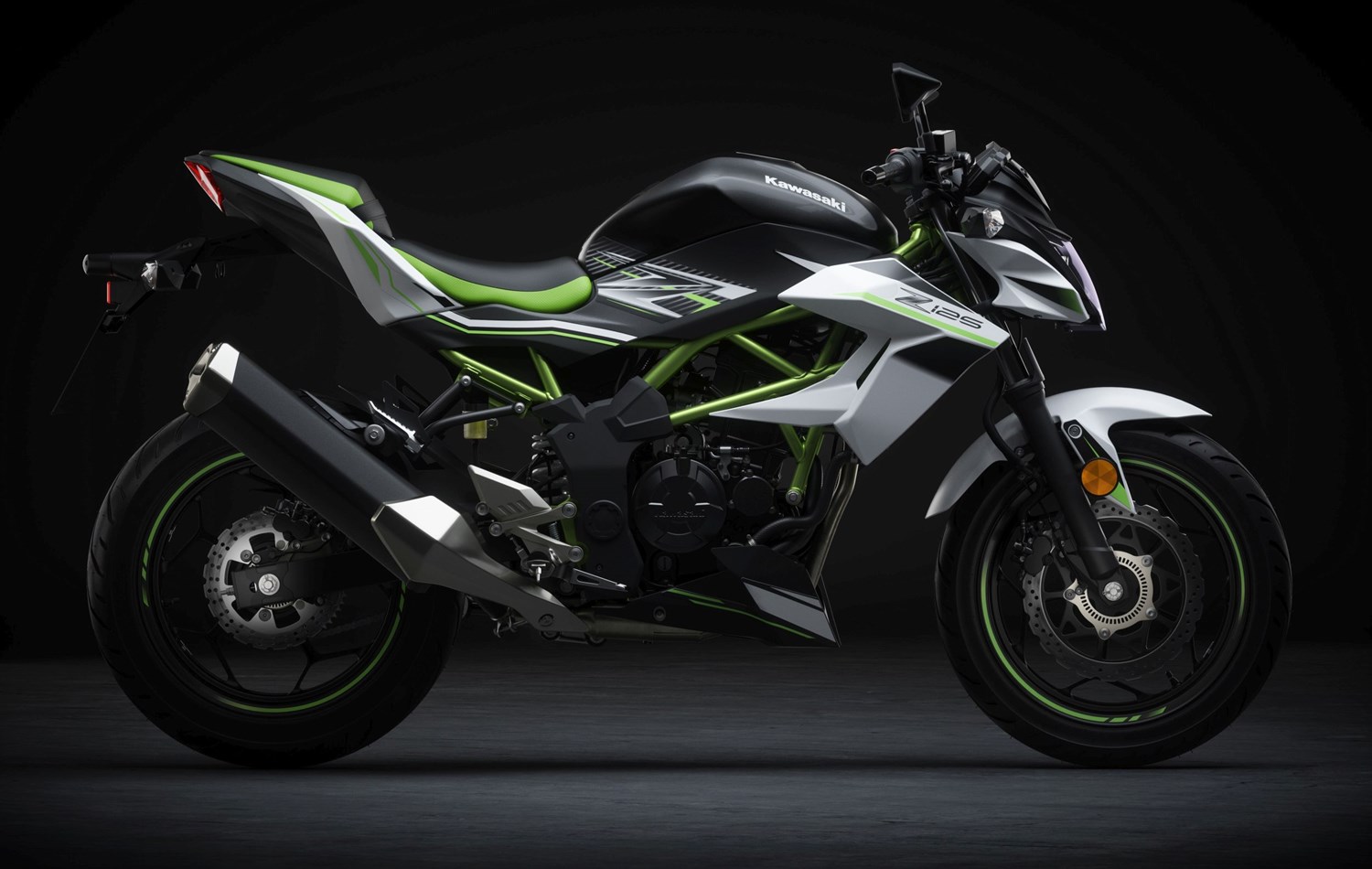

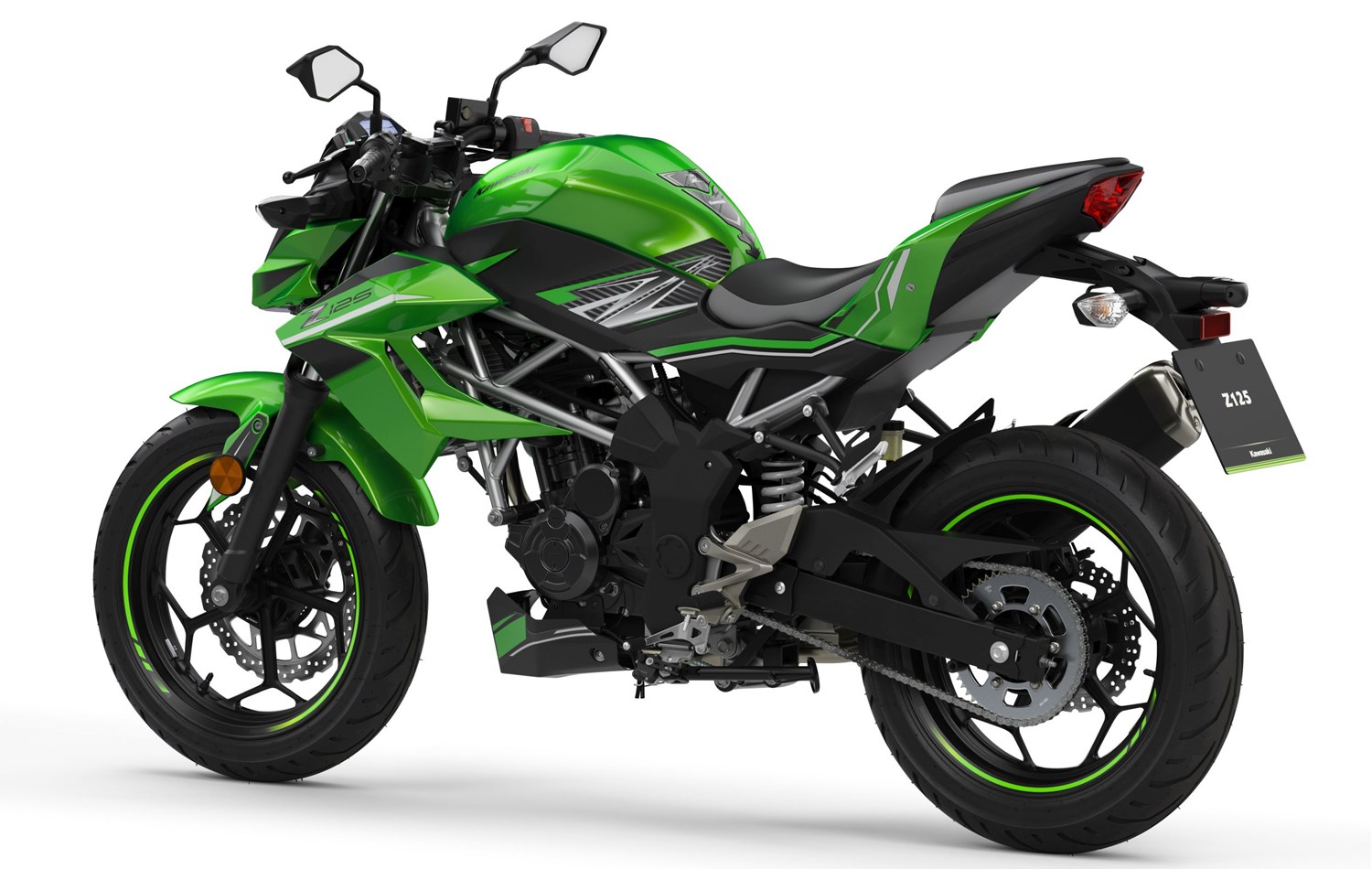

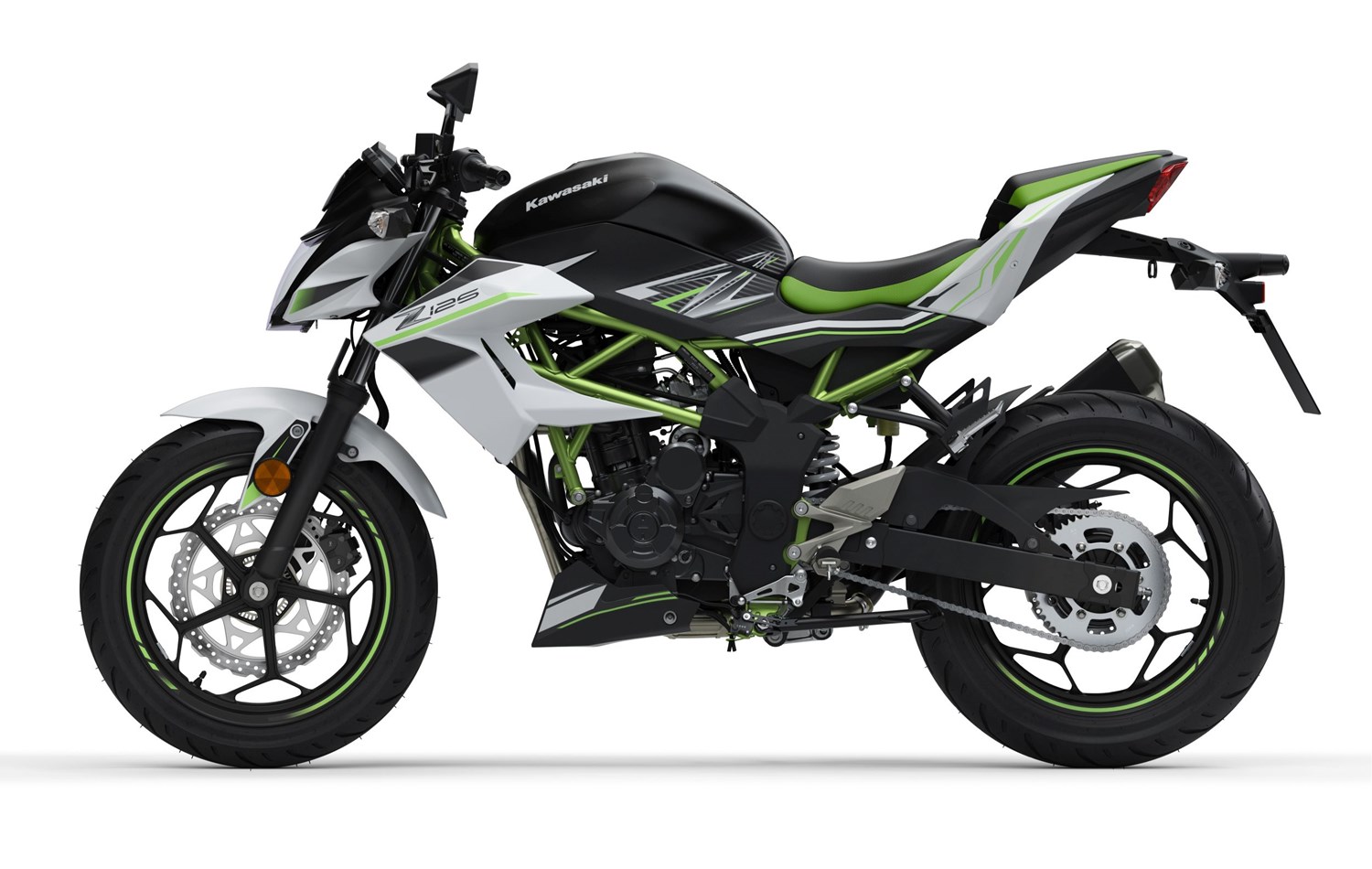

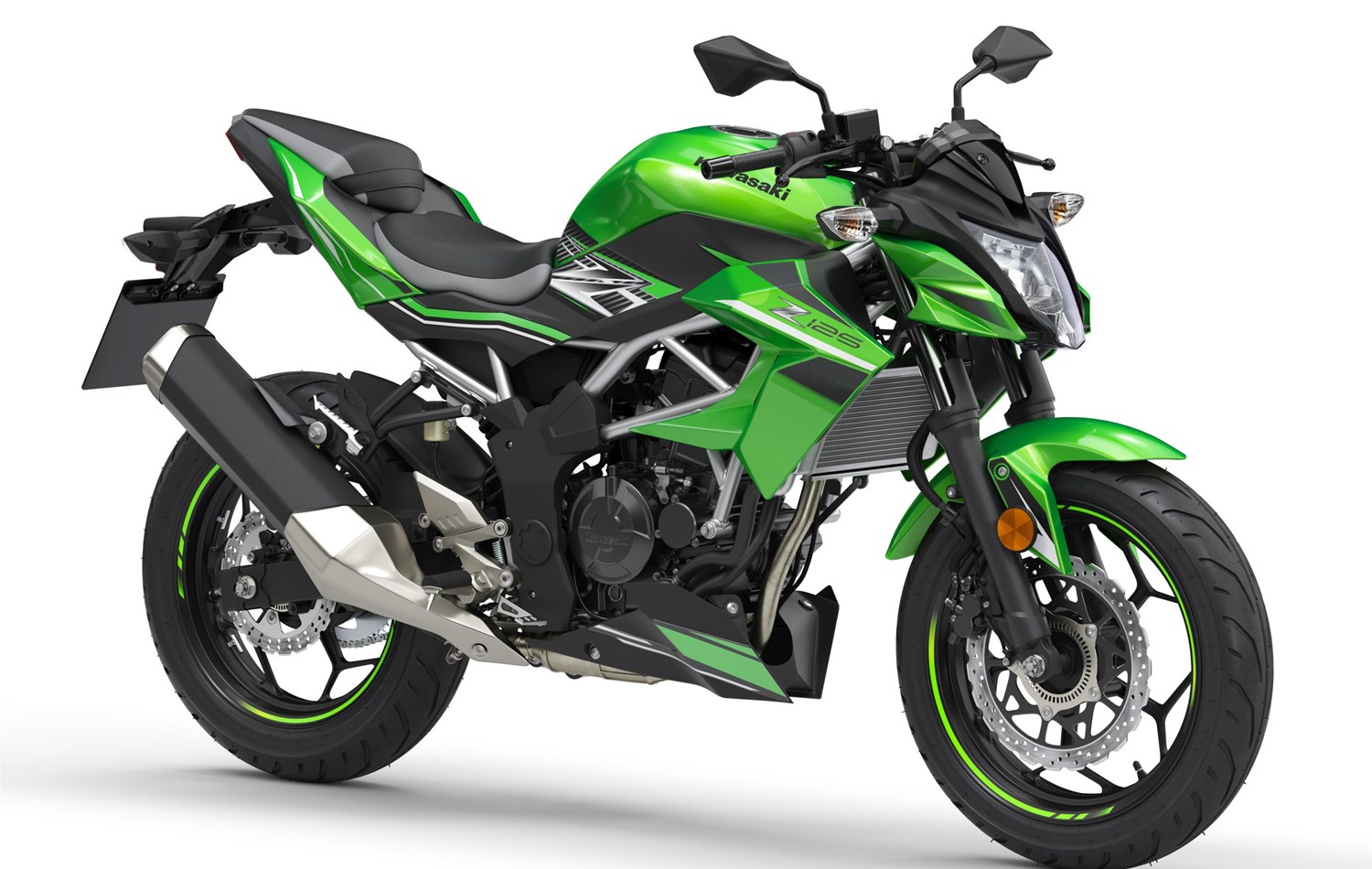

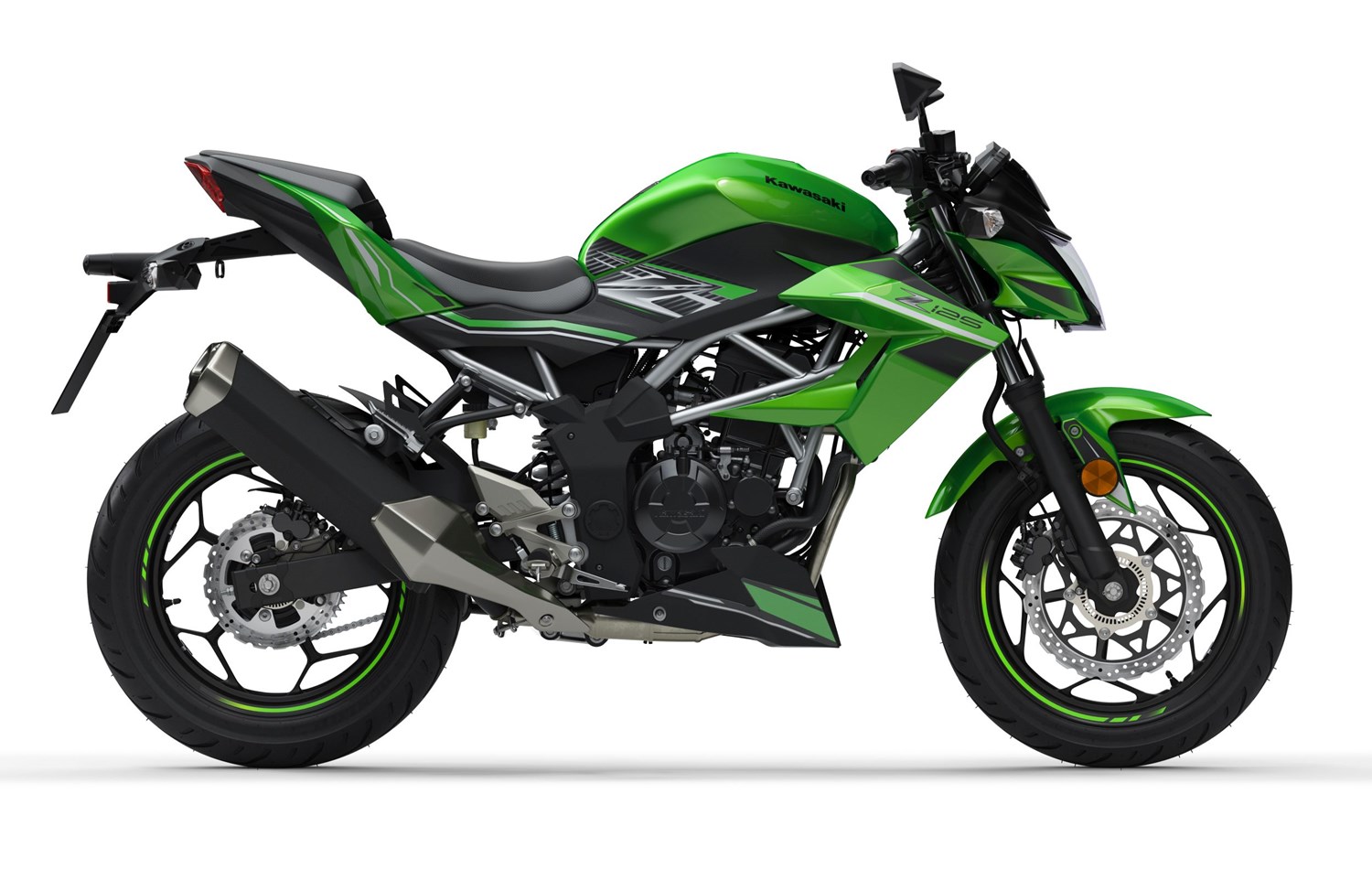

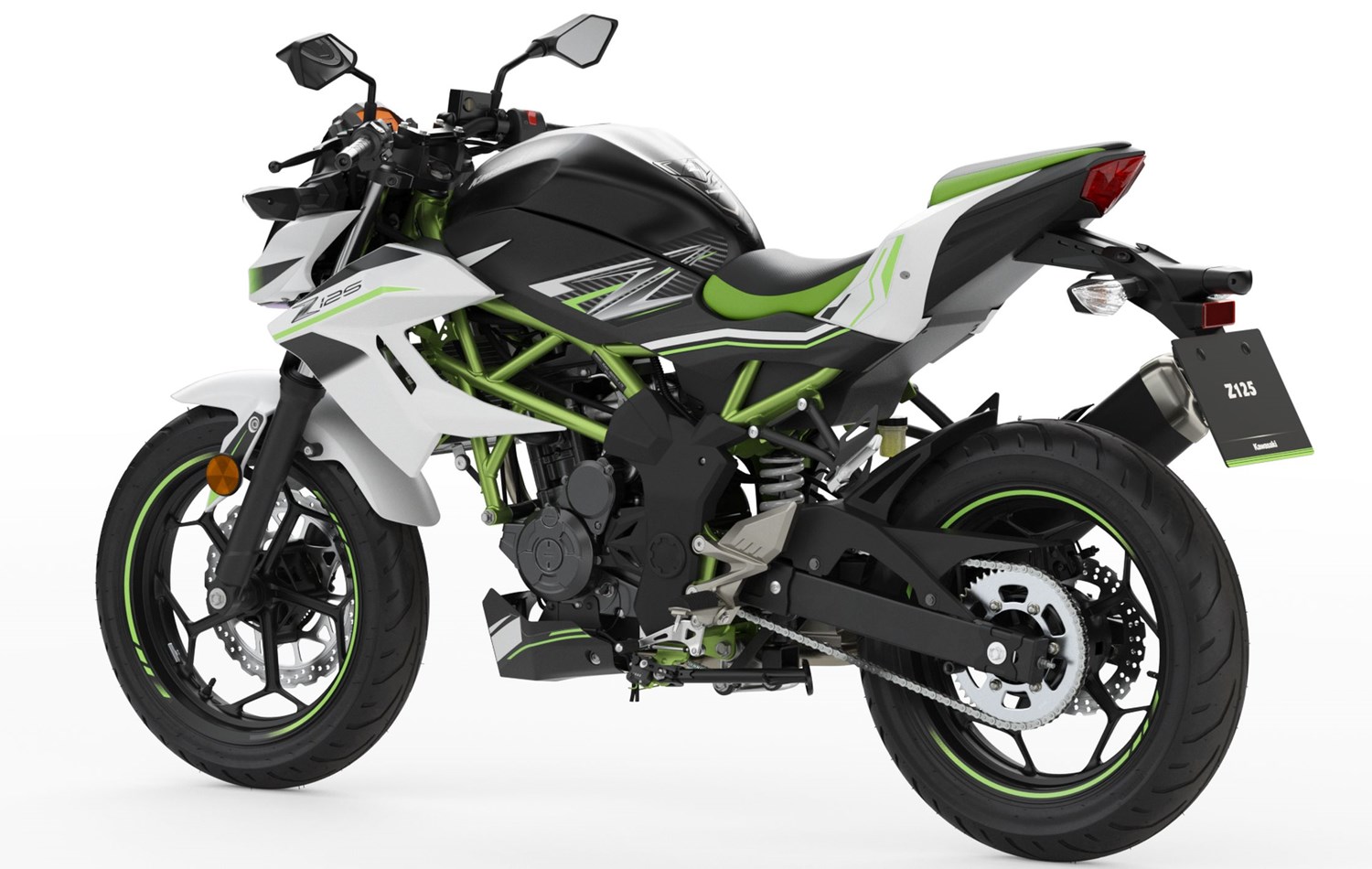

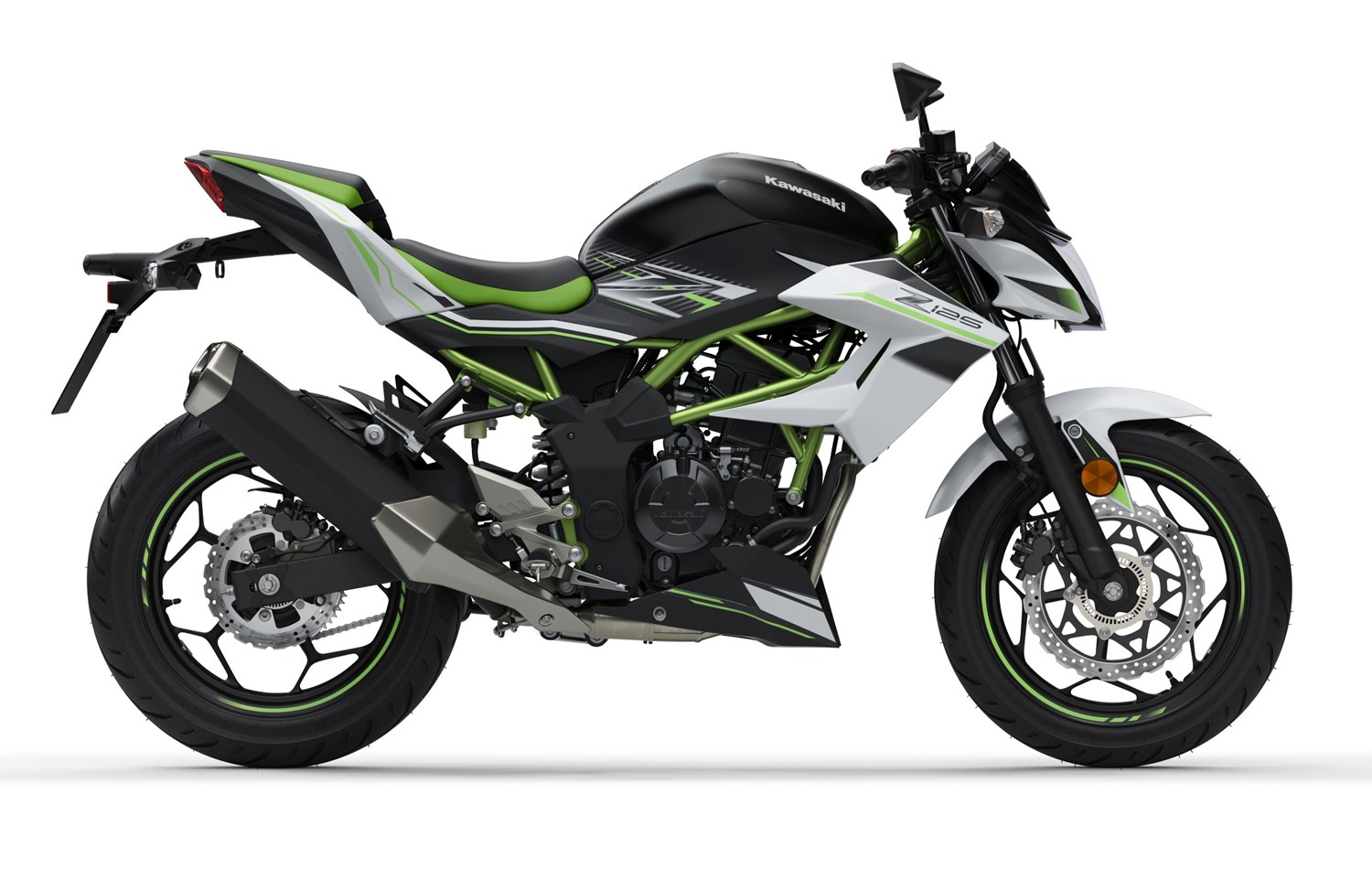

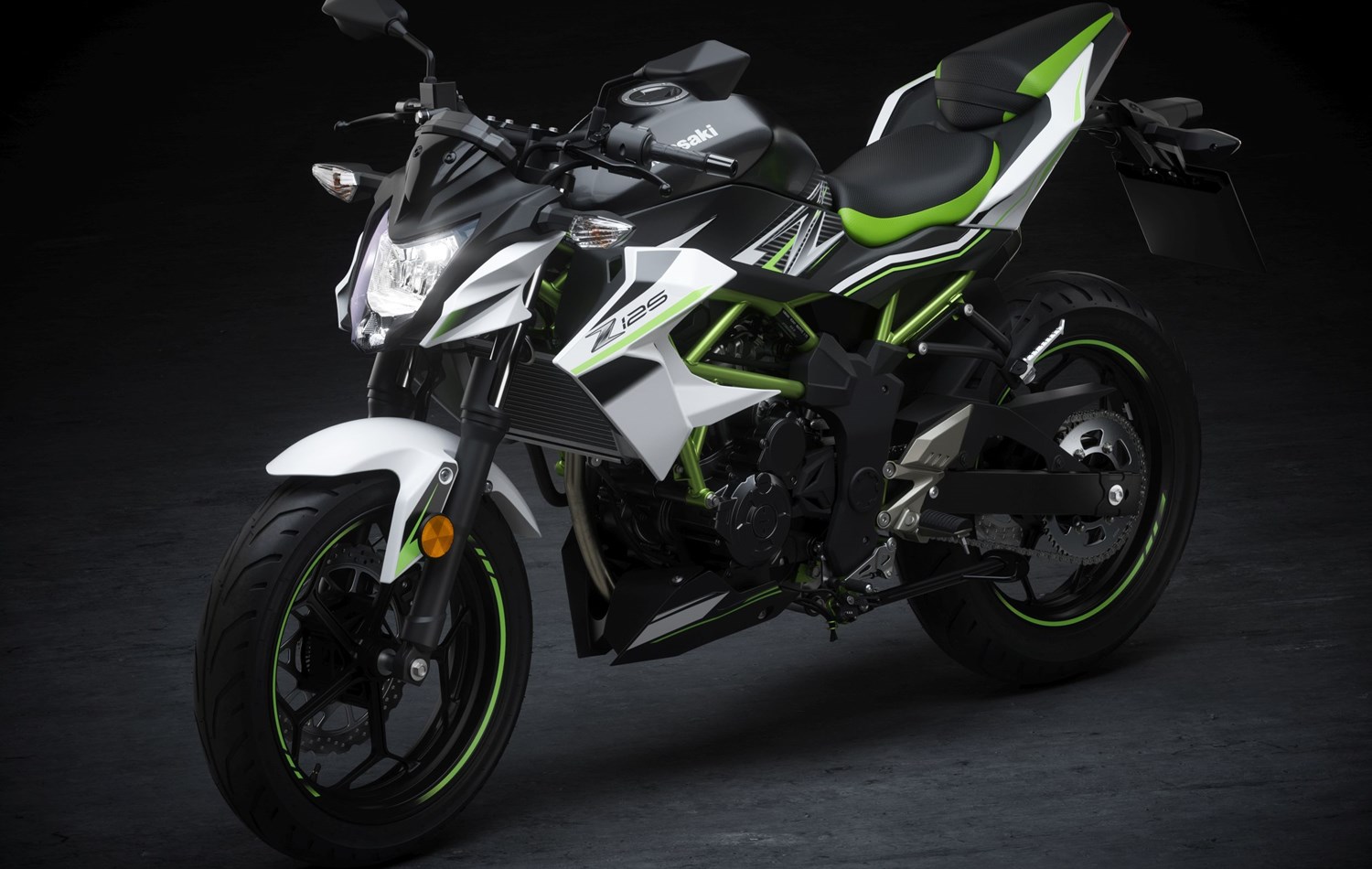

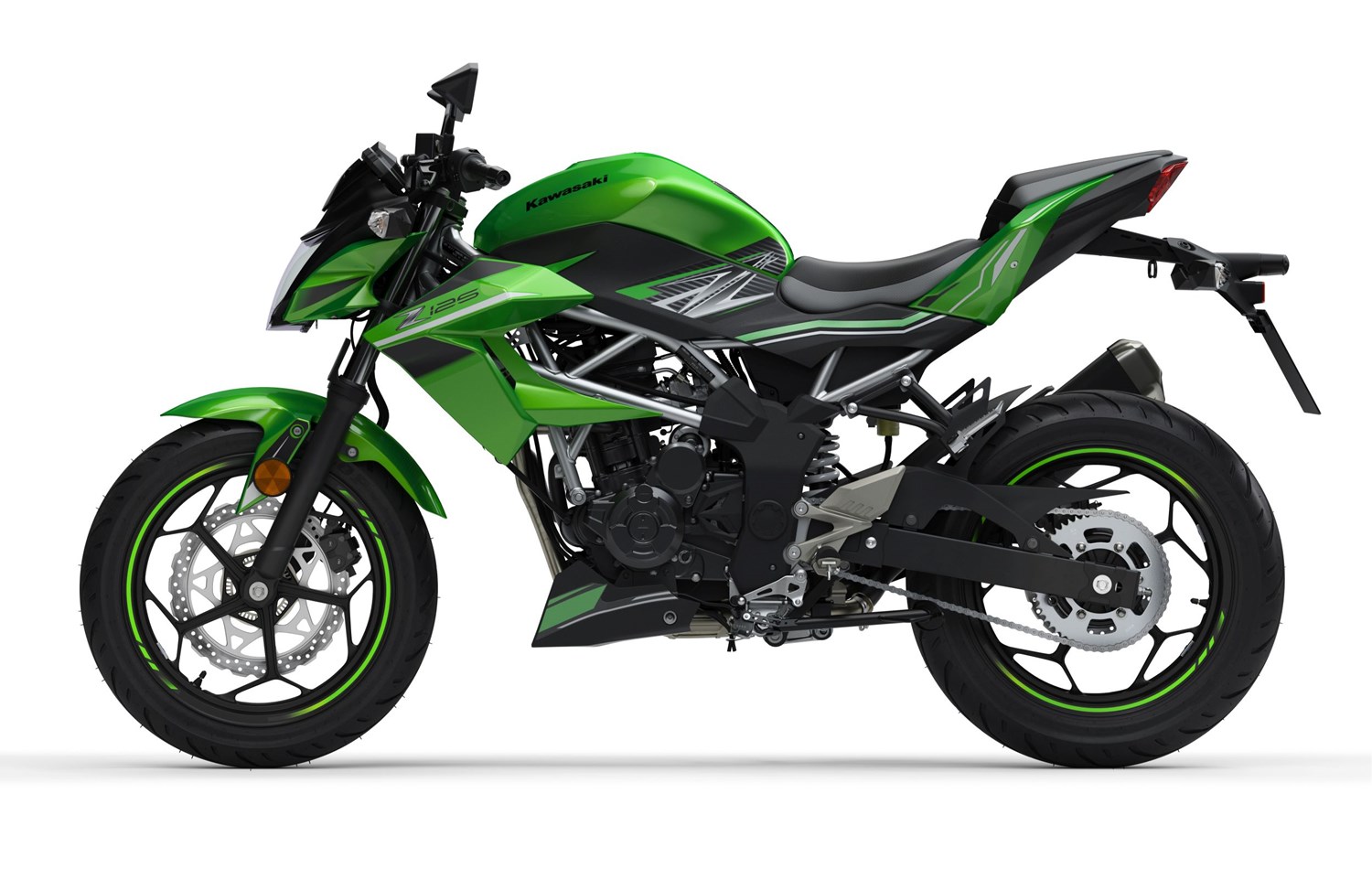

Kawasaki Z125
Overview

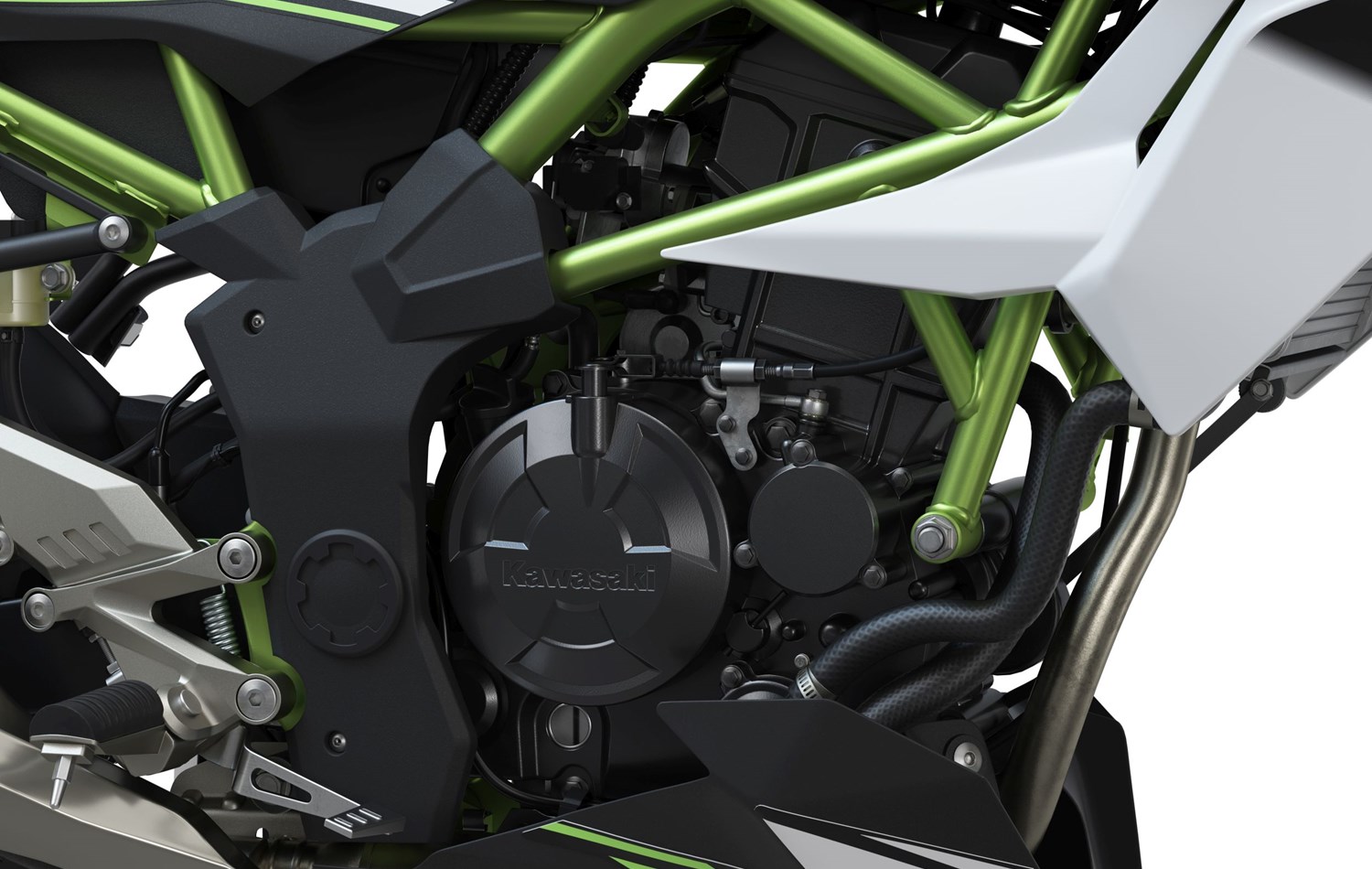

Engine and Drive Train
| Cylinders | 1 |
|---|---|
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | DOHC |
| Cooling | liquid |
| Lubrication | Forced |
| Displacement | 125 ccm |
| Bore | 58 mm |
| Stroke | 47,2 mm |
| Max. Power Output | 15 HP |
| Rpm at Max. Power Output | 10000 rpm |
| Max. Torque | 11,7 Nm |
| Rpm at Max. Torque | 7700 rpm |
| Compression Ratio | 11,7 |
| Fuel system | Injection |
| Throttle Bore | 28 mm |
| Starter | Electric |
| Ignition | Digital |

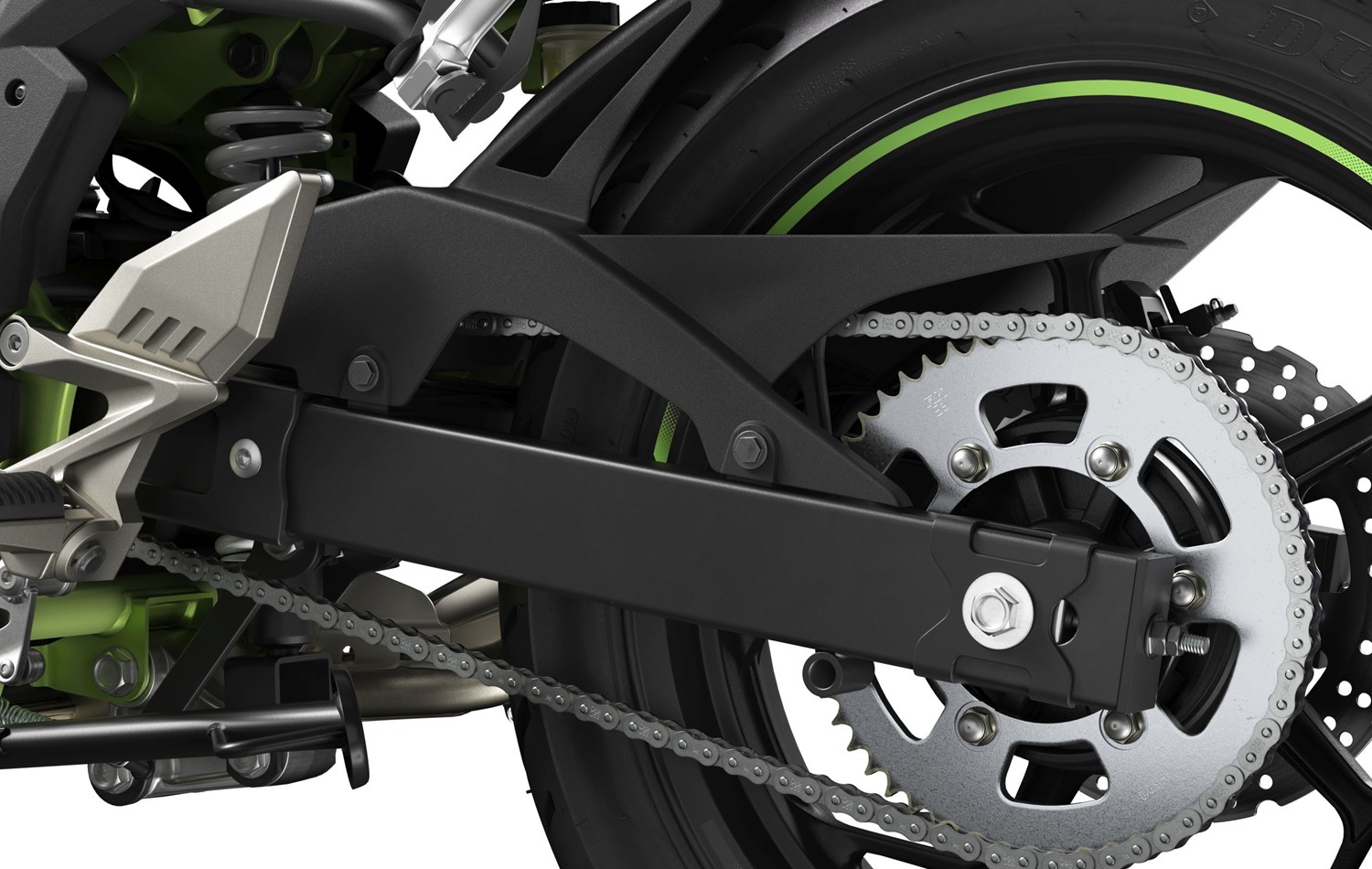

| Final Drive | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
Dimensions and Weights
| Front tyre width | 100 mm |
|---|---|
| Front tyre height | 80 % |
| Front tyre diameter | 17 inch |
| Rear tyre width | 130 mm |
| Rear tyre height | 70 % |
| Rear tyre diameter | 17 inch |
| Length | 1935 mm |
| Width | 740 mm |
| Height | 1015 mm |
| Wheelbase | 1330 mm |
| Seat Height from | 815 mm |
| Kerb Weight (with ABS) | 146 kg |
| Fuel Tank Capacity | 11 l |
| License | A1 |
Chassis

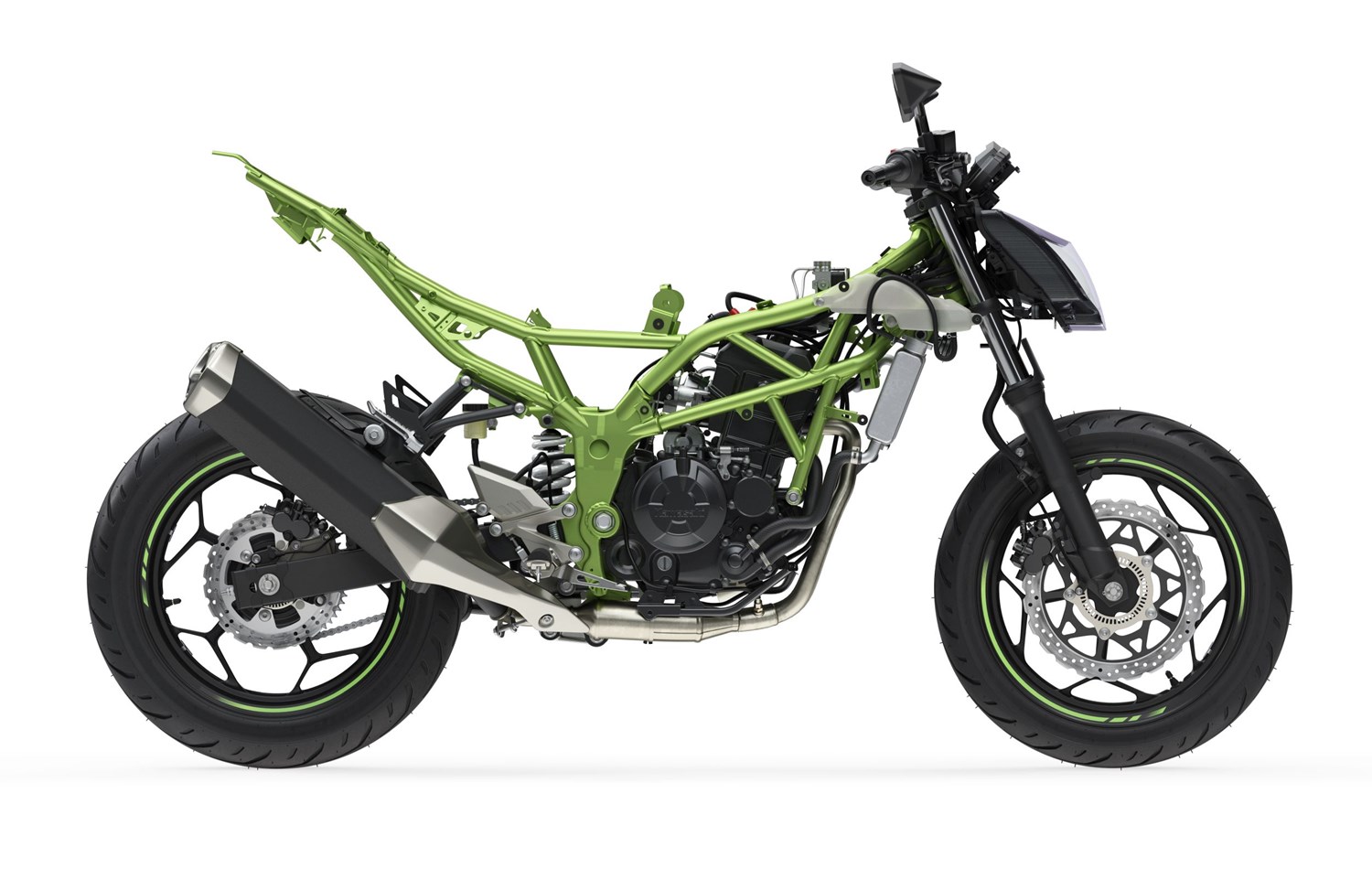

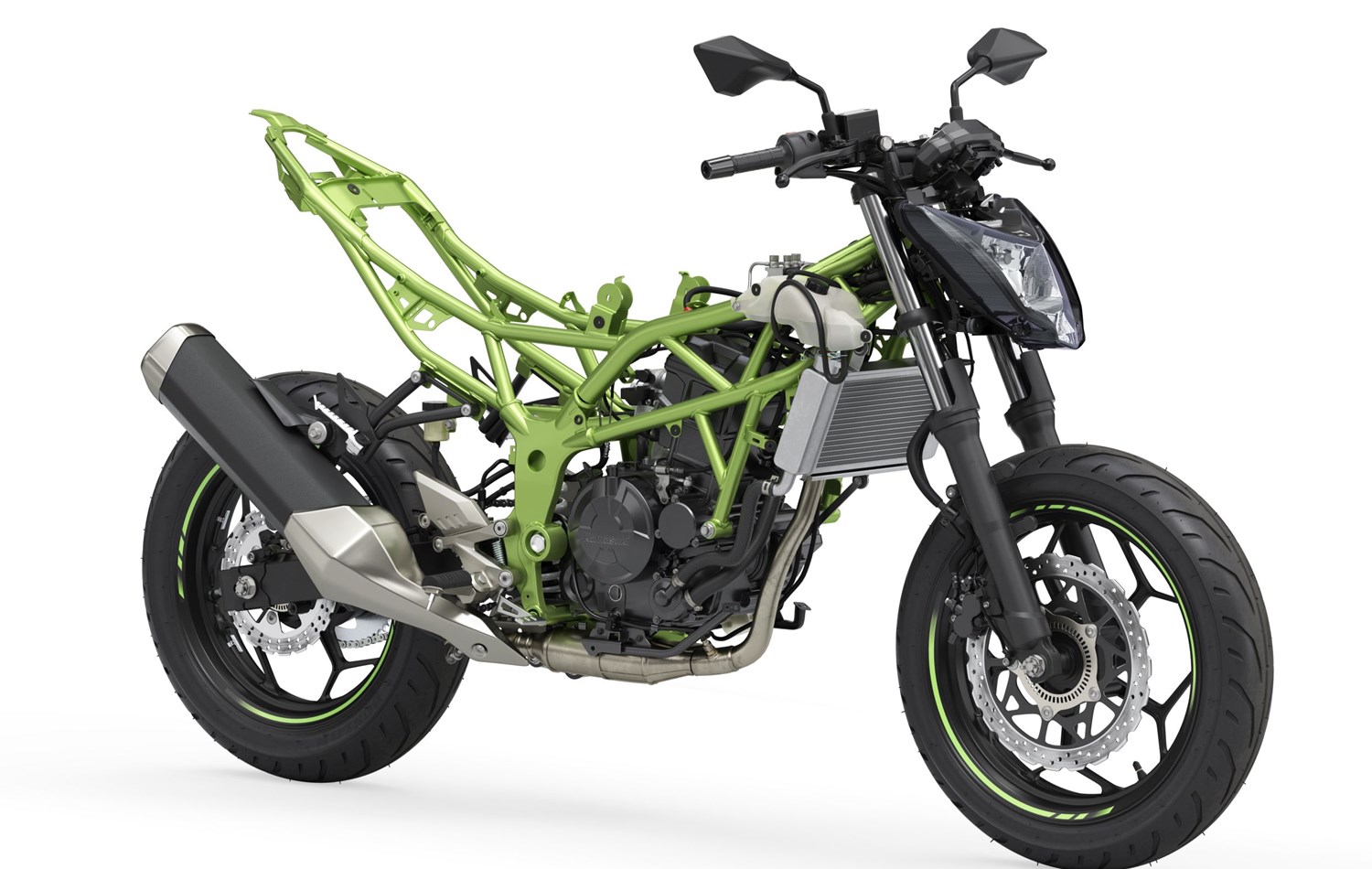

| Frame | Steel |
|---|---|
| Frame type | Tubular |
| Steering axis angle | 66,9 degree |
| Trail | 90 mm |

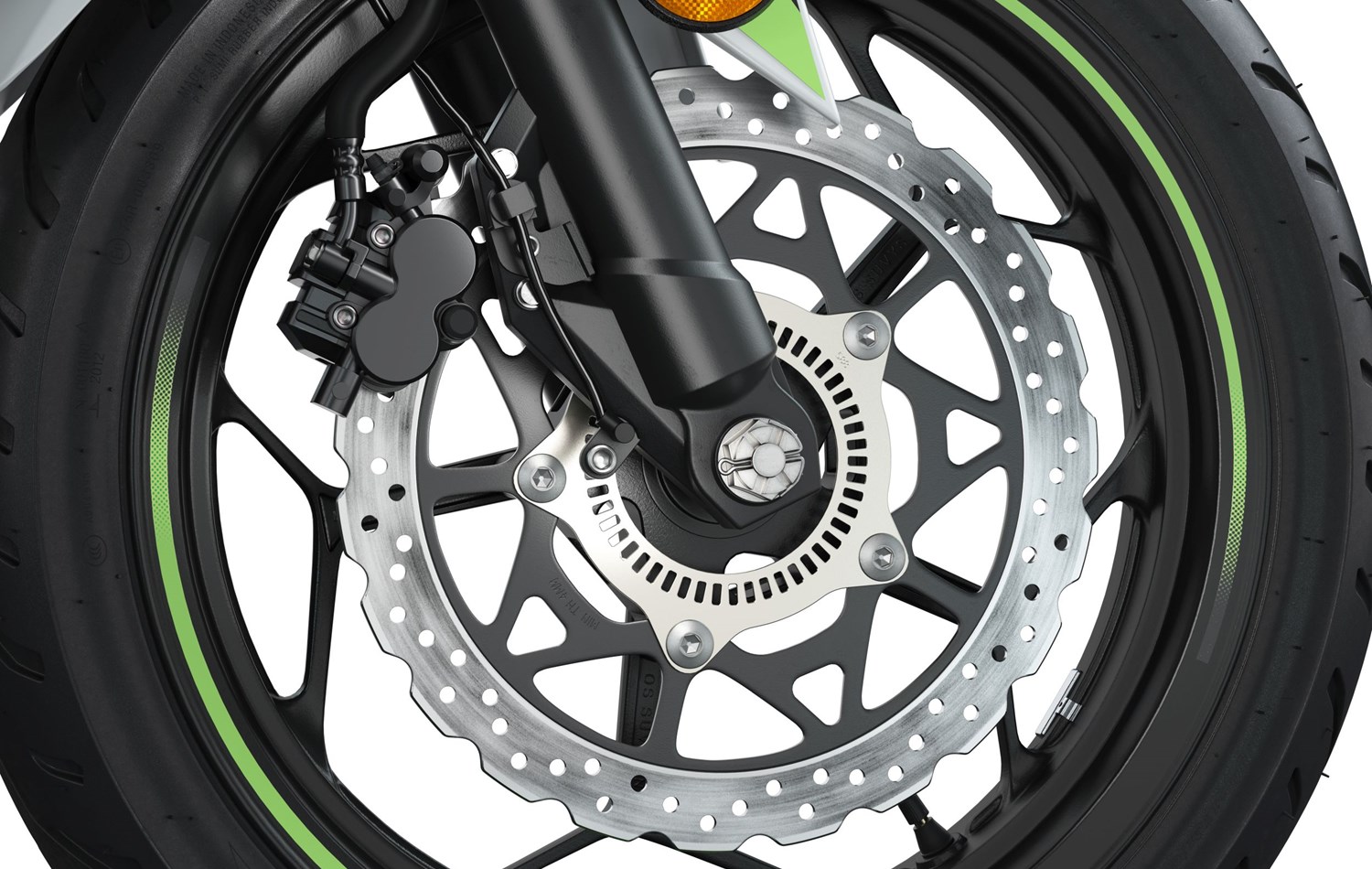

Brakes Front
| Front brake | Single disk |
|---|---|
| Diameter | 263 mm |
| Piston | Double piston |
| Technology | Petal |
Suspension Front
| Front suspension | Telescopic fork |
|---|---|
| Diameter | 37 mm |
| Travel | 110 mm |
Suspension Rear
| Rear suspension | Swing arm |
|---|---|
| Shock absorber | Monoshock |
| Travel | 120 mm |
Brakes Rear
| Rear brake | Disc |
|---|---|
| Diameter | 193 mm |
| Piston | Double piston |
All information is supplied without guarantee. Errors and clerical errors reserved.
